| Self-Propelled Rough-Terrain Scissor Lifts JCPT (RT) |
 |
 |
| Specifications |
|
| Model |
JCPT1017RT |
JCPT1217RT |
JCPT1417RT |
| S.W.L |
567kg |
454kg |
345kg |
| S.W.L On extension |
136kg |
| Maximum workers number |
4 |

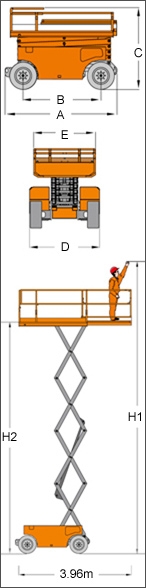

| Working height(H1) |
10.00m |
12.00m |
14.00m |
| Platform floor height(H2) |
8.00m |
10.00m |
12.00m |
| Overall length(A) |
2.67m |
| Overall length(with outriggers) |
3.38m |
| Overall width(D) |
1.73m |
| Overall height(Rails up) |
2.32m |
2.45m |
2.58m |
| Overall height(Rails down)(C) |
1.70m |
1.83m |
1.95m |
| Platform size |
2.51m×1.55m(E) |
| Platform extension size |
1.45m×1.55m |
| Ground clearance |
0.19m |
| Wheelbase(B) |
1.85m |
| Turning radius(Inside) |
1.52m |
| Turning radius(Outside) |
3.68m |
| Engine(Kubota D905) |
15.5kw/3600rpm |
| Travel speed(Stowed) |
6.1km/h |
| Travel speed(Raised) |
0.8km/h |
| Up/Down speed |
30/35 sec |
40/37 sec |
50/40 sec |
| Gradeability |
35% |
30% |
| Maximum working slope |
2-3° |
| Hydraulic tank |
62.5L |
| Diesel tank |
56.8L |
| Tyres(foam-filled) |
￠300×600mm |
| Weight |
2900kg |
3650kg |
4180kg |
| Weight(with outriggers) |
3222kg |
4098kg |
4485kg |
|
|
|
| |
| Detail |
| Standard equipment |
Options |
● Proportional controls
● Self-lock gate on platform
● Drivable at full height
● Non marking tyres
● 4WD
● Automatic brakes system
● Swing-out engine tray
● Sagety electric pump
● Emergency stop buttons
● Cylinder holding valve
● Onboard diagnostic system
● Tilt sensor with alarm
● Anti-restart engine protection
● All Motion Alarm
● Horn
● Hour meter
● Safety brackets
● Folding guardrails
● Extended platform
● Charger protection
● European III emission engine
● Flashing Beacon |
● Overload sensor with alarm
● Automatic leveling hydraulic outriggers
● AC power on the platform
● Platrom work lights
● Airline to the platfrom
● Hydraulic generator
● Hydraulic oil cooler |
|
|
|
| |
| Characteristic |
Single extension platform provide more workspace
● Neatly folding guardrailsmake it easy to maneuver through doorways,
into elevators and throughout other height-restricted areas
● Self-leveling hydraulic outriggers
● Rough terrain capabilies with 30% gradeability
● Slide out engine tray for easy maintenance access
● Slide out valve trays facilitate servicing
● On-board diagnostics help operators troubleshoot on the fly amd make adjustments in the field to maximize uptime |
|
|
| |
