| Self-Propelled Rough-Terrain Scissor Lifts JCPT(RT) |
 |
 |
| Specifications |
|
| Model |
JCPT1223RT |
JCPT1523RT |
JCPT1823RT |
| S.W.L |
1000kg |
680kg |
| Working height |
227kg |
| Maximum workers number |
7 |

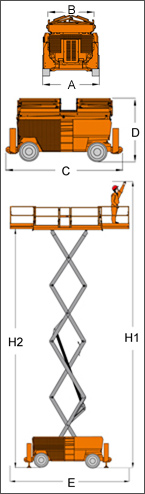

| Working height(H1) |
12.00m |
15.00m |
18.00m |
| Platform floor height(H2) |
10.00m |
13.00m |
16.00m |
| Overall length(C) |
4.88m |
| Overall width(A) |
2.27m |
| Overall height |
2.76m |
2.98m |
3.15m |
| Platform size |
3.98m×1.83m(B) |
| Platform extension size |
(E)6.57m×1.83m |
| Ground clearance |
0.22m |
| Wheelbase(D) |
2.86m |
| Turning radius(Inside) |
2.04m |
| Turning radius(Outside) |
5.20m |
| Engine(Perkins 404D22) |
38kw/3000rpm |
| Engine(Kubota V2403-M-DI) |
34kw/2400rpm |
| Travel speed(Stowed) |
6km/h |
| Travel speed(Raised) |
1.1km/h |
| Up/Down speed |
45/29 sec |
94/77 sec |
114/94 sec |
| Gradeability |
50% |
40% |
| Travel speed(Stowed) |
6km/h |
| Maximum working slope |
3° |
| Hydraulic tank |
130L |
| Diesel tank |
100L |
| Tyres(solid) |
33×12-20 |
| Weight |
7300kg |
7800kg |
8700kg |
|
|
|
| |
| Detail |
| Standard equipment |
Options |
● Can Bus Technology
● Proportional controls
● Two self-closing gates
● 4WD
● Oscillating axle
● Slide-out engine tray
● Tilt protection
● Tilt alarm
● Horn
● Hour meter
● Safety electric pump
● Fault indication on platform
● Anti-restart engine protection
● The glow plugs for cold starting
● Two extended platforms
● Flashing beacons
● European III emission engine
● Over loading limited |
● Automatic leveling hydraulic outriggers
● Hydraulic generator
● Hydraulic welder
● Hydraulic compressor
● Hydraulic water pump
● Hydraulic oil cooler
● AC power on the platform
● Platform work lights |
|
|
|
| |
| Characteristic |
● Roll-out double extension platform provide mord workspace
● Platorm size 6.57m×1.83m
● Neatly folding guardrailsmake it easy to maneuver through doorways,
into elevators and throughout other height-restricted areas
● Self-leveling hydraulic outriggers
● Rough terrain capabilies with 40% gradeability
● Tube protection package, to prevent accident, reduce replacing cost
● Slide out engine tray for easy maintenance access
● Slide-out battery trays facilitate servicing
● On-board diagnostics help operators troubleshoot on the fly amd make adjustments in the field to maximize uptime |
|
|
| |
