| Self-Propelled Vertical Lifts TMMWP6000 |
 |
 |
| Specifications |
|
| Model |
TMMWP18-6000 |
TMMWP20-6000 |
| S.W.L |
160kg |
|
| S.W.L On extension(can't use when two-mast lifting) |
120kg |

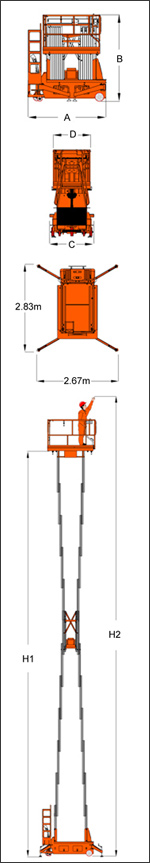

| Working height(H1) |
18.00m |
20.00m |
| Platform floor height(H2) |
16.00m |
18.00m |
| Overall length(A) |
2.30m |
| Overall width(C) |
1.30m |
| Overall height(B) |
2.50m |
| Platform size |
1.60m×1.08m(B) |
|
| Platform extension size |
0.75m×1.08m |
|
| Ground clearance |
0.10m |
| Wheelbase |
1.79m |
| Turning radius(Inside) |
2.50m |
| Turning radius(Outside) |
4.60m |
| Drive motors |
24VDC/1.5kw |
| Lifting motor(Four-mast) |
24VDC/3kw |
| Lifting motor(Two-mast) |
24VDC/1.5kw |
| Travel speed |
4km/h |
|
| Up/Down speed |
110/80 sec |
120/90 sec |
| Betteries(Drive) |
4×6V/250Ah |
| Betteries(Lifting)-Four mast |
4×6V/250Ah |
| Betteries(Drive)-Two mast |
2×12V/120Ah |
| Integrated charger |
24V/15-30A |
| Gradeability |
15% |
| Tyres(Drive motors) |
￠254×80mm |
| Tyres(Front wheels) |
10 in |
| Tyres(Back wheels) |
6 in |
| Weight |
2310kg |
2380kg |
|
|
|
| |
| Detail |
| Standard equipment |
● Proportional controls
● Battery charge indicator
● Swing gate on platform
● Forklift pockets
● Emergency down button
● Extended platforms
● Charger protection
● Horn
● Controller temperature protection
● Traction batteries with big capacity
● Over loading limited |
|
|
|
| |
| Characteristic |
High-capacity accumulator improve working time
● Single extension platform provide more workspace |
|
|
| |
