| Self-Propelled Vertical Lifts AMWP6000 |
 |
 |
| Specifications |
|
| Model |
AMWP18-6000 |
AMWP20-6000 |
| S.W.L |
160kg |
| S.W.L On extension(can't use when two-mast lifting) |
120kg |
|

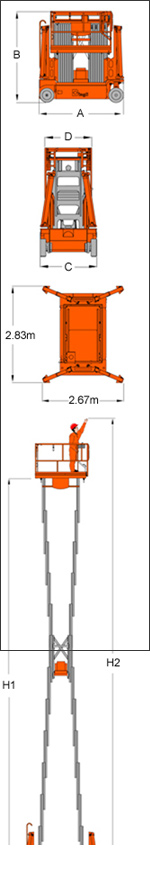

| Working height(H1) |
18.00m |
20.00m |
| Platform floor height(H2) |
16.00m |
18.00m |
| Overall length(A) |
2.30m |
|
| Overall width(C) |
2.50m(D) |
| Platform size |
1.60m×1.08m |
| Platform extension size |
0.75m×1.08m |
| Ground clearance |
0.10m |
| Wheelbase |
1.88m |
| Turning radius(Inside) |
1.40m |
| Turning radius(Outside) |
3.27m |
| Drive motors |
2×48VAC/2kw |
|
| Lifting motor(Four-mast) |
48VDC/3kw |
|
| Lifting motor(Two-mast) |
24VDC/2kw |
|
| Travel speed(Stowed) |
4km/h |
|
| Travel speed(Raised) |
1.1km/h |
|
| Up/Down speed |
110/80 sec |
120/90 sec |
| Betteries(Drive) |
8×6V/250Ah |
| Betteries(Lifting)-Four mast |
8×6V/250Ah |
| Betteries(Lifting)-Four mast |
8×6V/250Ah |
| Betteries(Drive)-Two mast |
2×12V/120Ah |
| Integrated charger(Four-mast) |
48V/30A |
| Integrated charger(Two-mast) |
24V/15A |
| Gradeability |
35% |
| Maximum working slope |
3° |
| Tyres |
￠406×125mm |
| Weight |
3100kg |
3160kg |
|
|
|
| Detail |
| Standard equipment |
● Can Bus Technology
● Proportional controls
● Battery charge indicator
● Swing gate on platform
● Hour Meter
● Forklift pockets
● Fault indicator on platform
● Low voltage alarm
● Emergency down button
● Extended platforms
● Charger protection
● Horn
● Tilt protection
● Tilt alarm
● Controller temperature protection
● Driving motor temperature protection
● Traction batteries with big capacity
● 2WD
● Automatic leveling hydraulic outriggers
● Over loading limited |
|
|
|
| |
| Characteristic |
Single extension platform provide more workspace
● 35% gradeablility when driving on slopes
● Self-leveling hydraulic outriggers
● High-capacity accumulator improve working time
● Swing-out components tray facilitate service
● On-hoard diagnostics help operators troubleshoot on the fly and make adjustments in the field to maximize uptime |
|
|
| |
