| Mobile Scissor Lifts JCPT(mini) |
 |
 |
| Specifications |
|
| Model |
JCPT3.0 |
JCPT3.9 |
| S.W.L |
240kg |

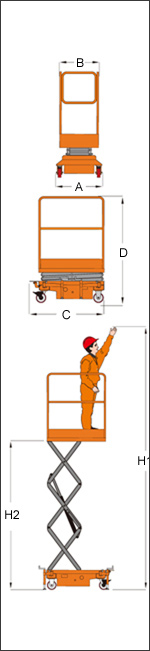

| Working height(H1) |
5.00m |
5.90m |
| Platform floor height(H2) |
3.00m |
3.90m |
| Overall length(C) |
1.15m |
| Overall width(A) |
0.70m |
| Overall height(D) |
1.87m |
1.82m |
| Platform size |
1.15m×0.60m(B) |
|
| Ground clearance |
0.06m |
| Wheelbase |
0.94m |
| Lifting motor |
12VDC/0.8kw |
| Up/Down speed |
32/40 sec |
40/48 sec |
| Betteries |
12V/120Ah |
| Integrated charger |
12V/12A |
| Tyres |
0.15m |
| Weight |
366kg |
420kg |
|
|
|
| Detail |
| Standard equipment |
● Battery charge indicator
● Leveling indicator
● Safety brackets
● Extended stop button
● Emergency lowering system
● Leveling outrigger device(JCPT3.9 only)
● Dual locking castors
● Forklift pockets
● Self-lock gate on platform |
|
|
|
| |

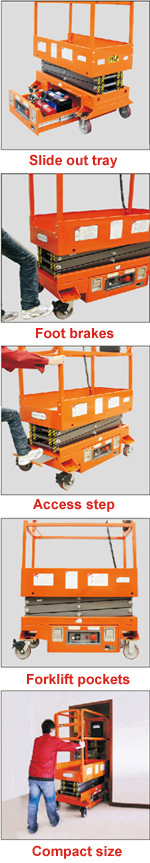

| Characteristic |
Lightweight design allow it to be easily transported by a single person
● Compact size (1.15m×0.70m) provide access in and around confined work areas
● Silde out tray for easy maintenance access
● On-board diagnostics help operators troubleshoot on the fly and make adjustments in the field to maximize uptime |
|
|
| |
