| Mobile Scissor Lifts JCPT(Mobile) |
 |
 |
| Specifications |
|
| Model |
JCPT8 |
JCPT9.5 |
JCPT11.5 |
| S.W.L |
550kg |
500kg |
450kg |
| S.W.L on extension |
112kg |

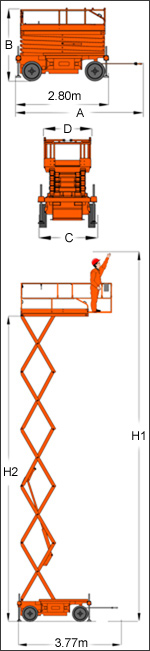

| Working height(H1) |
10.00m |
11.50m |
13.50m |
| Platform floor height(H2) |
13.50m |
9.50m |
11.50m |
| Overall length(A) |
3.70m |
| Overall width(C) |
1.68m |
| Overall height |
2.46m |
2.58m |
| Platform size |
Platform size |
|
| Platform extension size |
1.27m×1.12m |
| Ground clearance |
0.20m |
| Wheelbase |
1.90m |
| Lifting motor |
24VDC/3kw |
| Up/Down speed |
72/60 sec |
86/74 sec |
89/83 sec |
| Betteries |
4×6V/210Ah |
|
|
| Integrated charger |
24V/25A |
| Tyres(solid) |
6.50-10 |
| Weight |
2080kg |
2090kg |
2200kg |
|
|
|
| Detail |
| Standard equipment |
Options |
● Leveling outrigger device
● Battery charge indicator
● Traction batteries with big capacity
● Safety brackets
● Forklift pockets
● Emergency down button
● Extended platform
● Emergency stop button
● Leveling indicator
● Over loading limited |
● AC power on the platform
● Flashing beacons
|
|
|
|
| |
| Characteristic |
Single extension platform provide more workspace
● The maximum working height is 13.5m
● Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas
● Swing-out tray for easy maintenance access |
|
|
| |
