| Omni Direction Self-Propelled Electric Scissor lifts JCPT(OD) |
 |
 |
| Specifications |
|
| Model |
JCPT1013(OD) |
JCPT1213(OD) |
| S.W.L |
450kg |
400kg |
| S.W.L On extension |
112kg |

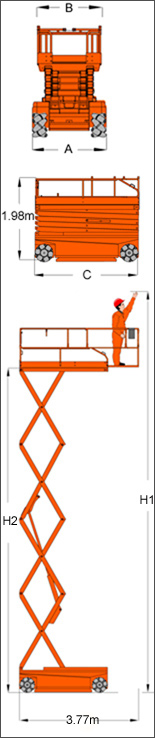

| Working height(H1) |
10.00m |
12.00m |
| Platform floor height(H2) |
8.00m |
10.00m |
| Overall length(C) |
2.51m |
| Overall width(A) |
1.30m |
| Overall height |
2.45m |
| Platform size |
2.50m×1.12m(B) |
|
| Platform extension size |
1.27m×1.12m |
|
| Ground clearance |
0.12m |
| Wheelbase |
2.03m |
| Turning radius |
0 |
| Drive motors |
4×48VDC/2kw |
| Lifting motor |
48VDC/2kw |
| Travel speed(Stowed) |
5km/h |
| Travel speed(Raised) |
1.1km/h |
| Up/Down speed |
70/60 sec |
89/88 sec |
| Betteries |
8×6V/250Ah |
|
| Integrated charger |
48V/30A |
| Gradeability |
20% |
| Maximum working slope |
3° |
| Tyres |
￠430mm |
| Weight |
2500kg |
2500kg |
|
|
|
| |
| Detail |
| Standard equipment |
Options |
● Can Bus Technology
● Proportional controls
● Automatic Pothole Protection
● Battery charge indicator
● Swing gate on platform
● Hour Meter
● Safety brackets
● Forklift pockets
● Fault indicator on platform
● Low voltage alarm
● Emergency down button
● Extended platforms
● Charger protection
● Omni-direction driving system
● Horn
● Tilt alarm
● Tilt protection
● Controller temperature protection
● Driving motor temperature protection
● Traction batteries with big capacity
● Over loading limited
● 4WD |
● AC power on the platform
● Flashing beacons |
|
|
|
| |
| Characteristic |
Single extension platform provide more workspace
● Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.
● 360-degree rotating provide access in and around confined work areas
● Swing-out tray for easy maintenance access
● On-board diagnostics help operators troubleshoot on the fly and make adjustments in the field to maximize uptime |
|
|
| |
