| Self-Propelled Scissor Lifts JCPT(III ) |
 |
 |
| Specifications |
|
| Model |
JCPT3.0(III) |
| S.W.L |
240kg |

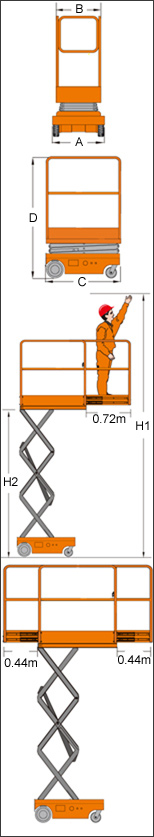

| Working height(H1) |
5.00m |
| Platform floor height(H2) |
3.00m |
| Overall length(C) |
1.18m |
| Overall width(A) |
0.76m |
| Overall height(D) |
1.82m |
| Platform size |
1.17m×0.60m(B) |
| Ground clearance |
0.06m |
| Wheelbase |
0.99m |
| Turning radius |
0 |
| Drive motors |
2×24VDC/0.4kw |
| Lifting motor |
24VDC/0.8kw |
| Travel speed(Stowed) |
4km/h |
| Travel speed(Raised) |
0.8km/h |
| Up/Down speed |
28/41 sec |
| Betteries |
2×12V/95Ah |
| Integrated charger |
24V/12A |
| Gradeability |
25% |
| Maximum working slope |
2° |
| Driving wheels |
￠230×80mm |
| Front wheels |
6in |
| Weight |
495kg |
|
|
|
| |
| Detail |
| Standard equipment |
Options |
● Proportional controls
● Self-lock gate on platform
● Drivable at full height
● Non marking tyres
● 2WD
● Automatic brakes
● Emergency lowering system
● Emergency stop buttons
● Cylinder holding valve
● Onboard diagnostic system
● Tilt sensor with alarm
● Horn
● Hour meter
● Safety brackets
● Charger protection
● Flashing beacon |
● Double extended platform
● Single extended platform |
|
|
|
| |

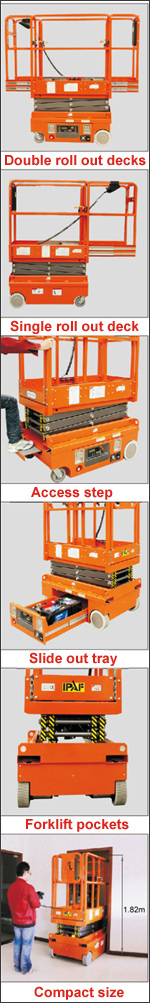

| Characteristic |
Double extension platform provide more workspace
● Compact size (1.18m×0.76m×1.82m) provide access in and around confined work areas
● Zero-turn radius and compact design provide access in and around confined work areas
● 25% gradeablility when driving on slopes
● Slide out tray for easy maintenance access
● On-board diagnostice help operators troubleshoot on the fly and make adjustments in the field to maximize uptime |
 |
|
| |
